Titanium Straight Tee

Product name: Titanium straight tee
Standard: ASME B16.9 , ASTM B363
Material grade: Gr1 Gr2 Gr7 Gr9 Gr12
OD: 1/2"-24"
Wall thickness: Sch5s-Sch80s
Type: Seamless ,welded
Surface: Pickled, polished,sand-blasting
Application: Connecting pipes
MOQ:5PCS
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium pipe fittings manufacturer

Send Inquiry

Product Introduction

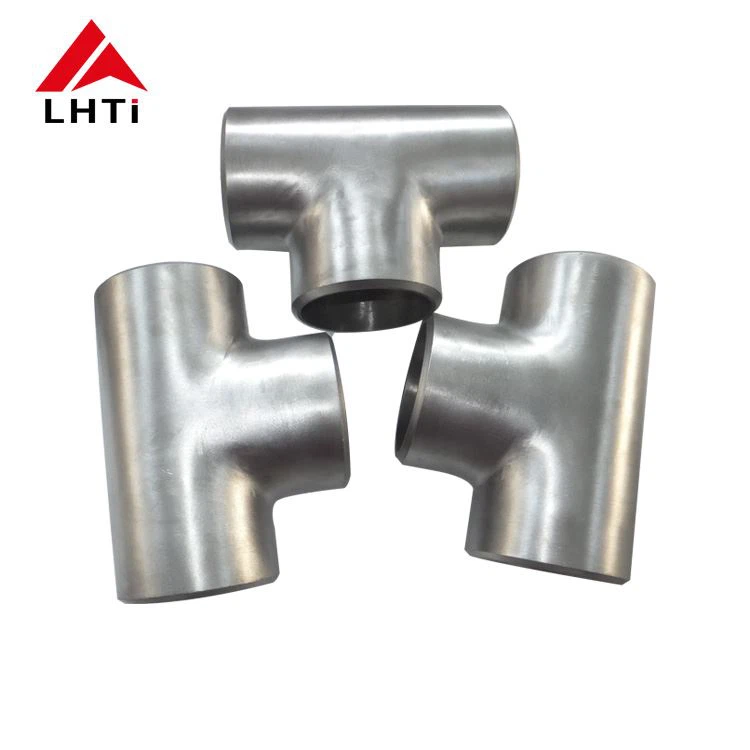

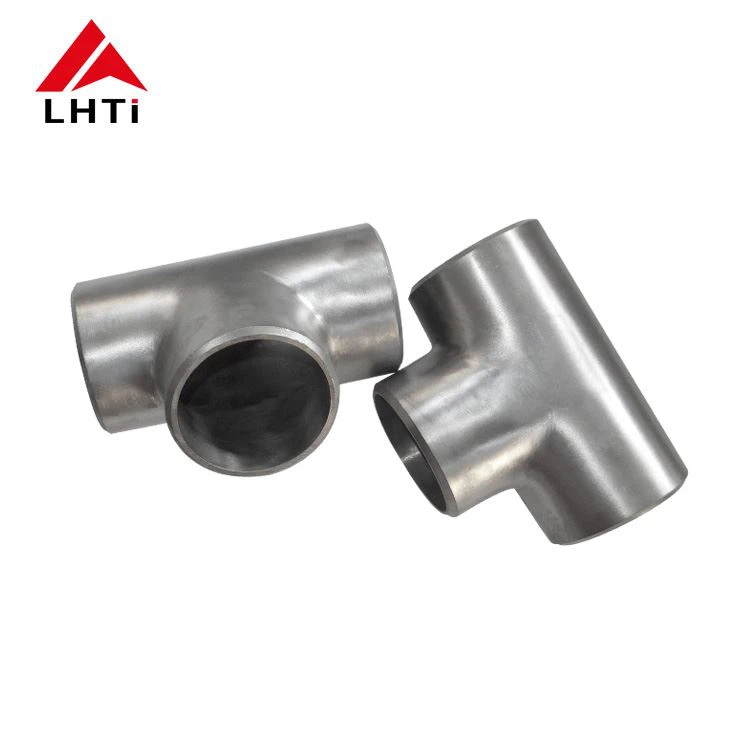

ASME B16.9 ASTM B363 Gr2 titanium straight tee

Titanium straight tee,which is the connecting part of titanium pipe fittings and titanium pipes. Its three ends can be connected to pipe fittings. The branch pipe and the other two pipe fittings are the same diameter tee. Equal diameter tees are commonly used in the construction and maintenance of petrochemical, petroleum and natural gas, liquefied gas, fertilizer, power plants, nuclear power, shipbuilding, papermaking, pharmaceuticals, food hygiene, urban construction and other industrial projects.

In industry feild, the request to the pressure of titanium tee is high, and the maximum pressure can reach 1325 lbs.

Product name	Titanium tee
Type	Straight tee
Material	Titanium Gr1 Gr2 Gr7 Gr9 Gr12
Standard	ASME B16.9, ASTM B363
Tee	NPS 1/2”-24”(DN20-DN600)
Wall thickness	Sch5s-Sch80s
Technique	Bulge forming(seamless) Butt-welded Forged Rolled
Surface treatment	Sand-blasting,polishing,pickling
Quality control(inspection for welding line)	UT(x-ray tests) or Bye penetrate test
Press test	Hydrostatic test
Material test report	EN10204.3.1
Application	Petroleum industry, chemical industry, natural gas industry, machinery industry etc.
Company certificate	ISO9001:2015

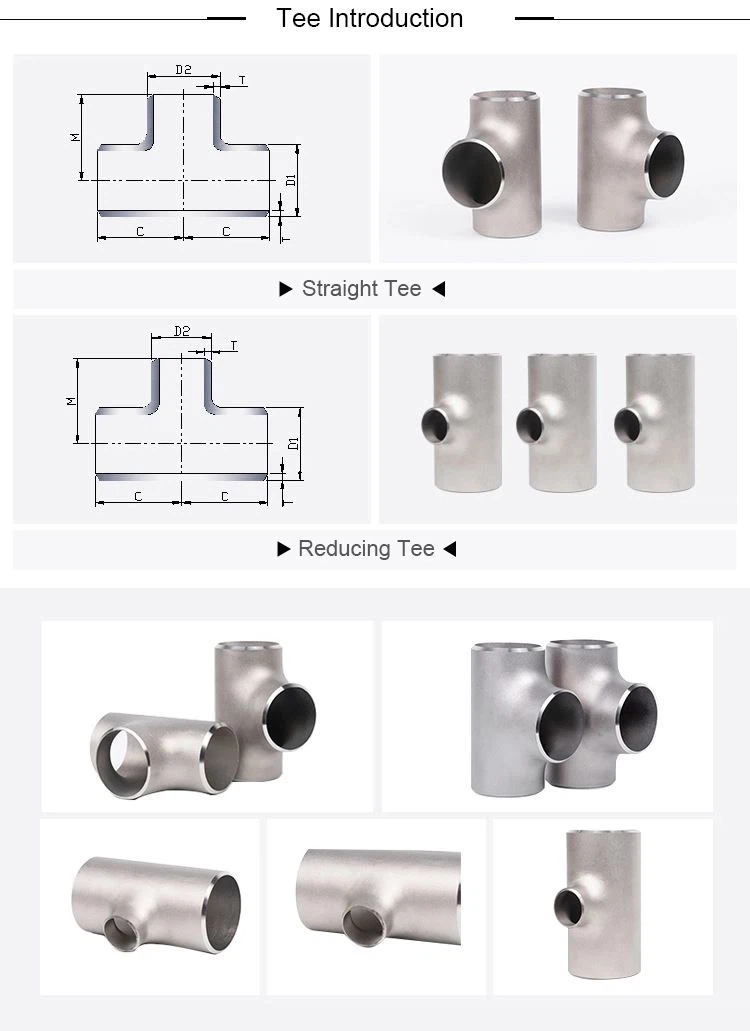

Titanium straight tee

Detailed images:

Norminal diameter	Outside diameter	Center to end
DN	NPS	D1×D2	C	M
20×20	3/4×3/4	26.7×26.7	29	29
20×15	3/4×1/2	26.7×21.3	29	29
25×25	1×1	33.4×33.4	38	38
25×20	1×3/4	33.4×26.7	38	38
25×15	1×1/2	33.4×21.3	48	48
32×32	1.1/4×1.1/4	42.2×42.2	48	48
32×25	1.1/4×1	42.2×33.4	48	48
32×20	1.1/4×3/4	42.2×26.7	48	48
32×15	1.1/4×1/2	42.2×21.3	57	57
40×40	1.1/2×1.1/2	48.3×48.3	57	57
40×32	1.1/2×1.1/4	48.3×42.2	57	57
40×25	1.1/2×1	48.3×33.4	57	57
40×20	1.1/2×3/4	48.3×26.7	57	57
40×15	1.1/2×1/2	48.3×21.3	57	57
50×50	2×2	60.3×60.3	64	64
50×40	2×1.1/2	60.3×48.3	64	60
50×32	2×1.1/4	60.3×42.2	64	57
50×25	2×1	60.3×33.4	64	51
50×20	2×3/4	60.3×26.7	64	44
65×65	2.1/2×2.1/2	73.0×73.0	76	76
65×50	2.1/2×2	73.0×60.3	76	70
65×40	2.1/2×1.1/2	73.0×48.3	76	67
65×32	2.1/2×1.1/4	73.0×42.2	76	64
65×25	2.1/2×1	73.0×33.4	76	57
80×80	3×3	89×89	86	86
80×65	3×2.1/2	88.9×73.0	86	83
80×50	3×2.1/2	88.9×60.3	86	76
80×40	3×1.1/2	88.9×48.3	86	73
80×32	3×1.1/4	88.9×42.2	86	70
90×90	3.1/2×3.1/2	101.6×101.6	95	95
90×80	3.1/2×3	101.6×88.9	95	92
90×65	3.1/2×2.1/2	101.6×73.0	95	89
90×50	3.1/2×2	101.6×60.3	95	83
90×40	3.1/2×1.1/2	101.6×48.3	95	79
100×100	4×4	114.3×114.3	105	105
100×90	4×3.1/2	114.3×101.6	105	102
100×80	4×3	114.3×88.9	105	98
100×65	4×2.1/2	114.3×73	105	95
100×50	4×2	114.3×60.3	105	89
100×40	4×1.1/2	114.3×48.3	105	86
125×125	5×5	141.3×141.3	124	124
125×100	5×4	141.3×114.3	124	117
125×90	5×3.1/2	141.3×101.6	124	114
125×80	5×3	141.3×88.9	124	111
125×65	5×2.1/2	141.3×73.0	124	108
125×50	5×2	141.3×60.3	124	105
150×150	6×6	168.3×168.3	143	143
150×125	6×5	168.3×141.3	143	137
150×100	6×4	168.3×114.3	143	130
150×90	6×3.1/2	168.3×101.6	143	127
150×80	6×3	168.3×88.9	143	124
150×65	6×2.1/2	168.3×73.0	143	121
200×200	8×8	219×219	178	178
200×150	8×6	219.1×168.3	178	168
200×125	8×5	219.1×141.3	178	162
200×100	8×4	219.1×114.3	178	156
200×90	8×3.1/2	219.1×101.6	178	152
250×250	10×10	273×273	216	216
250×200	10×8	273×219	216	203
250×150	10×6	273.1×168.3	216	194
250×125	10×5	273.1×141.3	216	191
250×100	10×4	273.1×114.3	216	184
300×300	12×12	323.9×323.9	254	254
300×250	12×10	323.9×273.1	254	241
300×200	12×8	323.9×219.1	254	229
300×150	12×6	323.9×168.3	254	219
300×125	12×5	323.9×141.3	254	216
350×350	14×14	355.6×355.6	279	279
350×300	14×12	355.6×323.9	279	270
350×250	14×10	355.6×273.1	279	257
350×200	14×8	355.6×219.1	279	248
350×150	14×6	355.6×168.3	279	238
400×400	16×16	406.4×406.4	305	305
400×350	16×14	406.4×355.6	305	305
400×300	16×12	406.4×323.9	305	295
400×250	16×10	406.4×273.1	305	283
400×200	16×8	406.4×219.1	305	273
400×150	16×6	406.4×168.3	305	264
450×450	18×18	457×457	343	343
450×400	18×16	457×406.4	343	330
450×350	18×14	406.4×355.6	343	330
450×300	18×12	406.4×323.9	343	321
450×250	18×10	457×273.1	343	308
450×200	18×18	457×219.1	343	298
500×500	20×20	508×508	381	381
500×450	20×18	508×457	381	368
500×400	20×16	508×406.4	381	356
500×350	20×14	508×355.6	381	356
500×300	20×12	508×323.9	381	346
500×250	20×10	508×273.1	381	333
500×200	20×8	508×219.1	381	324
550×550	22×22	559×559	419	419
550×500	22×20	559×508	419	406
550×450	22×18	559×457	419	394
550×400	22×16	559×406.4	419	381
550×350	22×14	559×355.6	419	381
550×300	22×12	559×323.9	419	371
550×250	22×10	559×273.1	419	359
600×600	24×24	610×610	432	432
600×550	24×22	610×559	432	432
600×500	24×20	610×508	432	432
600×450	24×18	610×457	432	419
600×400	24×16	610×406.4	432	406
600×350	24×14	610×355.6	432	406
600×300	24×12	610×323.9	432	397
600×250	24×10	610×273.1	432	384

Product application

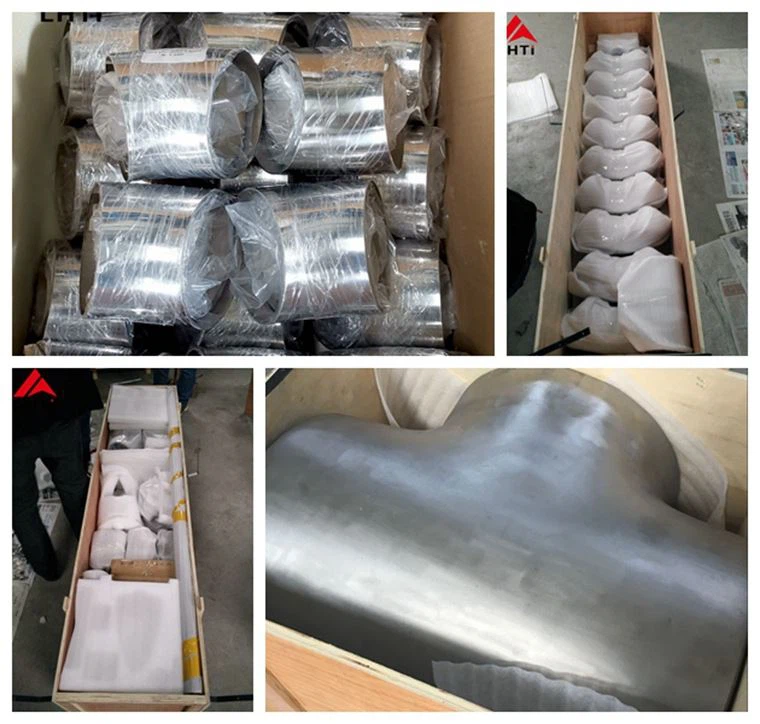

Packaging and Shipping:

Our packing is in accordance with the international packing requirements. Each titanium pipe fitting is individually packed, and the gap between the products is filled with pearl cotton to protect each pipe fitting from rubbing and colliding with each other.

Titanium pipe fittings

About our company:

Baoji Lihua Non-ferrous Metals Co,.Ltd, found in 2006 year, specalized in producing kinds of Titanium pipe fittings with tipes of Elbow, Tee, Reducers, Pipe Cap and Stub ends ranged from DN15 to DN1000.We have professional engeer team, experienced production specialists, advanced manufacturing technique, our products meet American standards ASTMB363-2004.Because of the higher mechanical property, excellent stamping performance, multiple types of welding performance (the welding metal strength can reach 90% of the base metal strength) , especially, the higher corrosion resistance of chloride, sulphide, ammonia and seawater, titunium alloy pipe fittings are widely used in the area of Our products are widly used in petroleum, chemical industry, shipbuilding, construction and machinery etc.. With excellent quality testing team and advanced inspection equipment, every production procedure is traced and inspected, every data is followed up by data. More and more our products have been exported to all over the world. High quality products, considerate service and competitive price, we will always provide fine service for our customers and expand our business in the globe. It is our permanent pursuit to create value for our customers and cooperate with you sinceerely.Your enquires and suggestions are always welcome! Contact us today and let us serve you needs!
