ASME B16.9 Titanium Elbow

Product Name: Titanium Elbow
Standard: ASME B16.9
Material: Gr1, Gr2, Gr7, Gr12
Unit Price: $10usd/pc-$200usd/pc
Outer Diameter: 1/2"-48"
Wall Thickness: Sch5s-Sch160s
Technique: Seamless/Welded

MOQ:5PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium pipe fittings manufacturer
Send Inquiry
Product Introduction

Titanium elbows offer several notable advantages, including a smooth inner wall that reduces flow resistance for heat mediums, exceptional resistance to acids and alkalis, and a long service life. These features also contribute to easy installation. Due to their robust properties, titanium elbows are extensively utilized across various industries such as chemical processing, petroleum, light and heavy manufacturing, power generation, aerospace, and shipbuilding, as well as other fundamental engineering applications.



titanium elbow

Product Name: Titanium Elbow

Standard: ASME B16.9 ASME B363

Material: Gr1, Gr2, Gr7, Gr12

Outer Diameter: 1/2"-48"

Wall Thickness: Sch5s-Sch160s

Type: Seamless/Welded

Technique: Extruded, welded

MOQ:5 PCS

Delivery time:

If in stock, 3-54 working days

If needed to manufacture, 15-35 working days



Advantages of ASME B16.9 titanium elbow:

  • Precision Manufacturing

  • Light in weight

  • Excellent corrosion resistance

  • High Strength

  • Excellent strength-to-weight ratio

  • High temperature resistance

  • Low temperature resistance

  • Good thermal conductivity

  • Low density

  • Long service life





Chemical composition of titanium elbows:

 Grade

Fe max

O max

N max

C max

H max

Pd

Al

V

Mo

Ni

Elong'n

Σb

(Mpa)

σr0.2

 (Mpa)

No

wt%

wt%

wt%

wt%

wt%

wt%

wt%

wt%

wt%

wt%

%

MPa

MPa

Grade 1

0.2

0.18

0.03

0.1

0.015



24

240

140

Grade 2

0.3

0.25

0.03

0.1

0.015



20

400

275

Grade 7

0.3

0.25

0.03

0.1

0.015

0,12-0,25



20

400

275

Grade 12

0.3

0.25

0.03

0.1

0.015



0.3

0.8

18

 460

300



Detailed Images of ASME B16.9 titanium Elbow:

gr2 titanium elbow 16

55ASME B16.9 titanium elbow

Titanium 45 Degree Elbow Data

  Schedule 10S Light N.P.S. Schedule 40S Standard N.P.S.
Nominal Pipe Size Outside Diameter Center to Face Wall Thickness Inside Diameter Approx. Wt in Lbs./Kgs. Wall Thickness Inside Diameter Approx. Wt in Lbs./Kgs.
in mm in mm in mm in mm in mm lb kg in mm in mm lb kg
1/2″ 15 0.84 21.34 0.63 15.88 0.08 2.11 0.67 17.12 0.04 0.02 0.11 2.77 0.62 15.80 0.05 0.02
3/4″ 20 1.05 26.67 0.44 11.11 0.08 2.11 0.88 22.45 0.04 0.02 0.11 2.87 0.82 20.93 0.05 0.02
1″ 25 1.32 33.40 0.88 22.23 0.11 2.77 1.10 27.86 0.11 0.05 0.13 3.38 1.05 26.64 0.14 0.06
1-1/4″ 32 1.66 42.16 1.00 25.40 0.11 2.77 1.44 36.63 0.14 0.06 0.14 3.56 1.38 35.05 0.22 0.10
1-1/2″ 40 1.90 48.26 1.13 28.58 0.11 2.77 1.68 42.72 0.22 0.10 0.15 3.68 1.61 40.89 0.28 0.13
2″ 50 2.38 60.33 1.38 34.93 0.11 2.77 2.16 54.79 0.32 0.15 0.15 3.91 2.07 52.50 0.50 0.23
2-1/2″ 65 2.88 73.03 1.75 44.45 0.12 3.05 2.64 66.93 0.61 0.28 0.20 5.16 2.47 62.71 0.97 0.44
3″ 80 3.50 88.90 2.00 50.80 0.12 3.05 3.26 82.80 0.79 0.36 0.22 5.49 3.07 77.93 1.36 0.62
3-1/2″ 90 4.00 101.60 2.25 57.15 0.12 3.05 3.76 95.50 0.95 0.43 0.23 5.74 3.55 90.12 1.79 0.81
4″ 100 4.50 114.30 2.50 63.50 0.12 3.05 4.26 108.20 1.36 0.62 0.24 6.02 4.03 102.26 2.63 1.19
5″ 125 5.56 141.30 3.13 79.38 0.13 3.40 5.30 134.49 2.29 1.04 0.26 6.55 5.05 128.19 4.33 1.96
6″ 150 6.63 168.28 3.75 95.25 0.13 3.40 6.36 161.47 3.43 1.56 0.28 7.11 6.07 154.05 6.86 3.11
8″ 200 8.63 219.08 5.00 127.00 0.15 3.76 8.33 211.56 6.75 3.06 0.32 8.18 7.98 202.72 13.50 6.12
10″ 250 10.75 273.05 6.25 158.75 0.17 4.19 10.42 264.67 12.50 5.67 0.37 9.27 10.02 254.51 24.50 11.11
12″ 300 12.75 323.85 7.50 190.50 0.18 4.57 12.39 314.71 17.00 7.71 0.38 9.53 12.00 304.80 37.50 17.01
14″ 350 14.00 355.60 8.75 222.25 0.19 4.78 13.62 346.05 23.00 10.43 0.38 9.53 13.25 336.55 44.50 20.18
16″ 400 16.00 406.40 10.00 254.00 0.19 4.78 15.62 396.85 30.00 13.61 0.38 9.53 15.25 387.35 58.00 26.30
18″ 450 18.00 457.20 11.25 285.75 0.19 4.78 17.62 447.65 38.00 17.23 0.38 9.53 17.25 438.15 75.00 34.01
20″ 500 20.00 508.00 12.50 317.50 0.22 5.54 19.56 496.93 63.00 28.57 0.38 9.53 19.25 488.95 94.00 42.63
24″ 600 24.00 609.60 15.00 381.00 0.25 6.35 23.50 596.90 89.00 40.36 0.38 9.53 23.25 590.55 133.00 60.32



Titanium 90 Degree Elbow Data

  Schedule 10S Light N.P.S. Schedule 40S Standard N.P.S.
Nominal Pipe Size Outside Diameter Center to Face Inside Diameter Wall Thickness Approx. Wt. in Lbs./Kgs. Inside Diameter Wall Thickness Approx. Wt in Lbs./Kgs.
in mm in mm in mm in mm in mm lb kg in mm in mm lb kg
1/2″ 15 0.84 21.34 1.50 38.10 0.67 17.12 0.08 2.11 0.08 0.04 0.62 15.80 0.11 2.77 0.10 0.05
3/4″ 20 1.05 26.67 1.13 28.58 0.88 22.45 0.08 2.11 0.09 0.04 0.82 20.93 0.11 2.87 0.11 0.05
1″ 25 1.32 33.40 1.50 38.10 1.10 27.86 0.11 2.77 0.17 0.08 1.05 26.64 0.13 3.38 0.20 0.09
1-1/4″ 32 1.66 42.16 1.88 47.63 1.44 36.63 0.11 2.77 0.29 0.13 1.38 35.05 0.14 3.56 0.32 0.15
1-1/2″ 40 1.90 48.26 2.25 57.15 1.68 42.72 0.11 2.77 0.39 0.18 1.61 40.89 0.15 3.68 0.50 0.23
2″ 50 2.38 60.33 3.00 76.20 2.16 54.79 0.11 2.77 0.65 0.29 2.07 52.50 0.15 3.91 0.89 0.40
2-1/2″ 65 2.88 73.03 3.75 95.25 2.64 66.93 0.12 3.05 1.08 0.49 2.47 62.71 0.20 5.16 1.72 0.78
3″ 80 3.50 88.90 4.50 114.30 3.26 82.80 0.12 3.05 1.54 0.70 3.07 77.93 0.22 5.49 2.75 1.25
3-1/2″ 90 4.00 101.60 5.25 133.35 3.76 95.50 0.12 3.05 2.14 0.97 3.55 90.12 0.23 5.74 3.57 1.62
4″ 100 4.50 114.30 6.00 152.40 4.26 108.20 0.12 3.05 2.72 1.23 4.03 102.26 0.24 6.02 5.26 2.39
5″ 125 5.56 141.30 7.50 190.50 5.30 134.49 0.13 3.40 4.58 2.08 5.05 128.19 0.26 6.55 8.65 3.92
6″ 150 6.63 168.28 9.00 228.60 6.36 161.47 0.13 3.40 6.86 3.11 6.07 154.05 0.28 7.11 13.75 6.24
8″ 200 8.63 219.08 12.00 304.80 8.33 211.56 0.15 3.76 13.50 6.12 7.98 202.72 0.32 8.18 27.00 12.24
10″ 250 10.75 273.05 15.00 381.00 10.42 264.67 0.17 4.19 25.00 11.34 10.02 254.51 0.37 9.27 48.50 22.00
12″ 300 12.75 323.85 18.00 457.20 12.39 314.71 0.18 4.57 34.00 15.42 12.00 304.80 0.38 9.53 75.00 34.01
14″ 350 14.00 355.60 21.00 533.40 13.62 346.05 0.19 4.78 46.00 20.86 13.25 336.55 0.38 9.53 89.00 40.36
16″ 400 16.00 406.40 24.00 609.60 15.62 396.85 0.19 4.78 60.00 27.21 15.25 387.35 0.38 9.53 116.00 52.61
18″ 450 18.00 457.20 27.00 685.80 17.62 447.65 0.19 4.78 75.00 34.01 17.25 438.15 0.38 9.53 154.00 69.84
20″ 500 20.00 508.00 30.00 762.00 19.56 496.93 0.22 5.54 126.00 57.14 19.25 488.95 0.38 9.53 189.00 85.71
24″ 600 24.00 609.60 36.00 914.40 23.50 596.90 0.25 6.35 177.00 80.27 23.25 590.55 0.38 9.53 265.00 120.18

Titanium elbow (3)

Packing:

Each titanium elbow is packed separately in plastic bags. The pads and foam films are filled in gaps to protect the goods from collision and extrusion during transportation. The outside is packed in strong cartons or wooden cases.1

 titanium elbow 90 degree

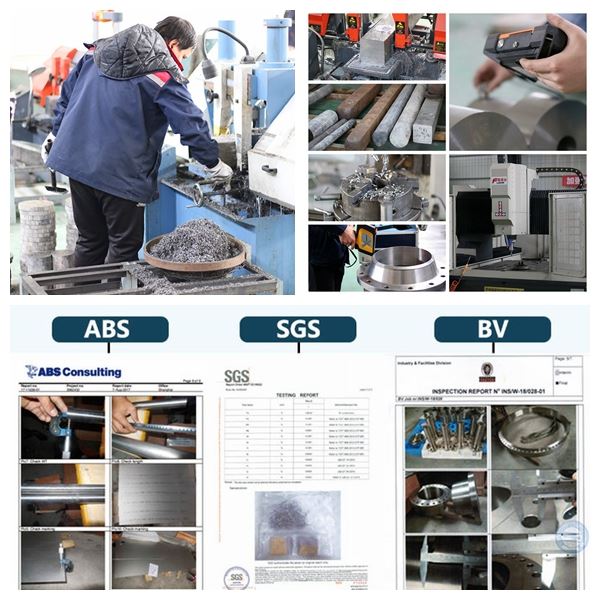

About our company:our companyfactoryour advantagementlihua titanium rod (1)
