Titanium Anodizing Jigs
Titanium anodizing jigs
What is a titanium anodizing jigs/titanium jig/titanium rack?
Titanium installation in electroplating production is mainly conducted, supported and fixed parts, pendants and electrode connections, so that the current is more evenly transmitted to the parts for electroplating. In some cases, the uniform distribution of the coating can also be compensated by a suspension because the solution properties limit it.
Item | Anodizing Tianium jig/rack | Size | Customsed size | |
Material | Titanium | Size(mm)in Bulk Stock | 20/30/50 teeth Can be customized | |
Grade | Gr1 Gr2 | Performance | Corrosion-resisant |
Chemical composition (Wt%)
ASTM No. | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min) of Titanium Anodizing Jigs
ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
ksi | Mpa | ksi | Mpa | |||
Grade 1 | Unalloyed Ti ("Pure") 35A -CP1 | 35 | 240 | 25 | 170 | 30 |
Grade 2 | Unalloyed Ti ("Pure") 50A -CP2 | 58 | 400 | 40 | 275 | 25 |
Chemical requirements | |||||||||||
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
TC11 | 0.05 | 0.08 | 0.012 | 0.25 | 0.15 | 5.8~7.0 | / | / | 2.8~3.8 | / | bal |
TA18 | 0.05 | 0.08 | 0.015 | 0.25 | 0.12 | 2.0~3.5 | 1.5~3.0 | / | / | / | bal |
TC20 | 0.05 | 0.08 | 0.009 | 0.25 | 0.20 | 5.5~6.5 | / | / | / | / | bal |
TC21 | 0.05 | 0.08 | 0.015 | 0.15 | 0.15 | 5.2~6.8 | / | / | 2.2~3.3 | / | bal |
TC26 | 0.05 | 0.08 | 0.012 | 0.25 | 0.15 | / | / | / | / | / | bal |
Detailed images:

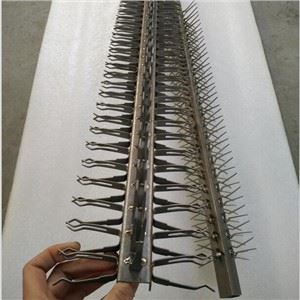

Different styles titanium jigs/racks for andizing/plating/coating:

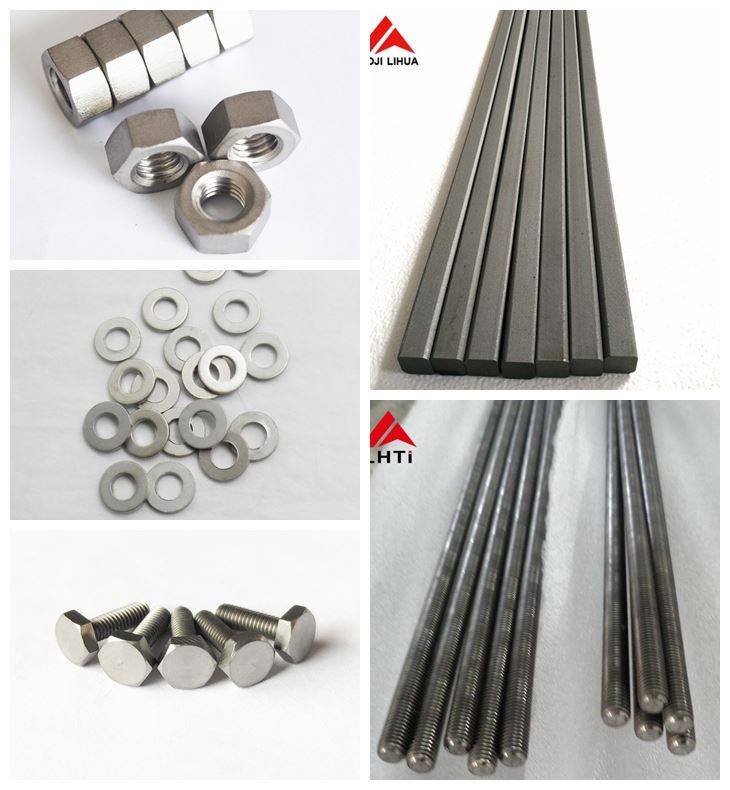

Retaled products:
Packaging and Shipping:

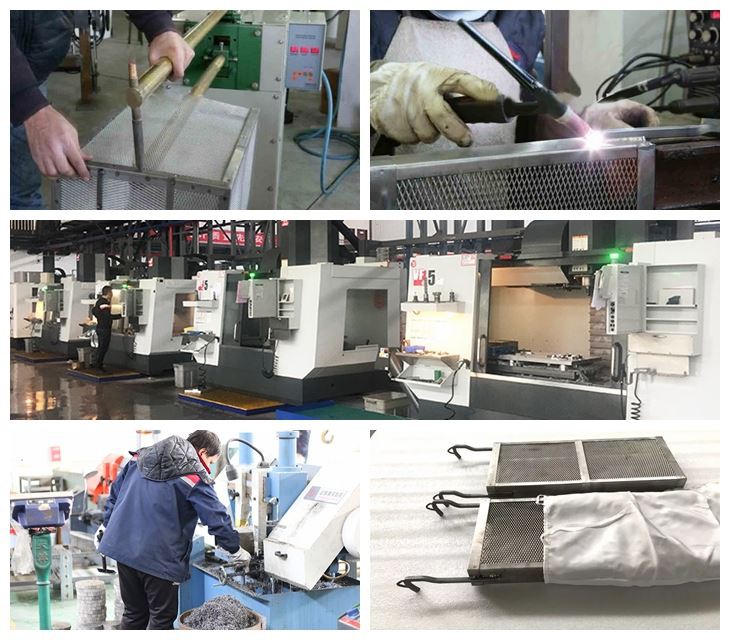

About our company:
Hot Tags: titanium anodizing jigs, China, manufacturers, suppliers, factory, customized, low price, in stock, made in China, Titanium Jigs For Electroplating, Titanium Plate, titanium jigs plating, gr2 anode titanium jigs for anodizing, Titanium Rack For Anodizing, Titanium Racks For Anodizing
