Titanium Disks
Standard: ASTM / ASME B381 , AMS 4928
Material Grade:Gr1,Gr2,Gr5, Gr7 ,Gr9,Gr12
Technique: Forged, CNC machined
Type: Round disc
Quality test: Appearance, Chemical composition, Physical properties,Ultrasonic Testing
Titanium Disks

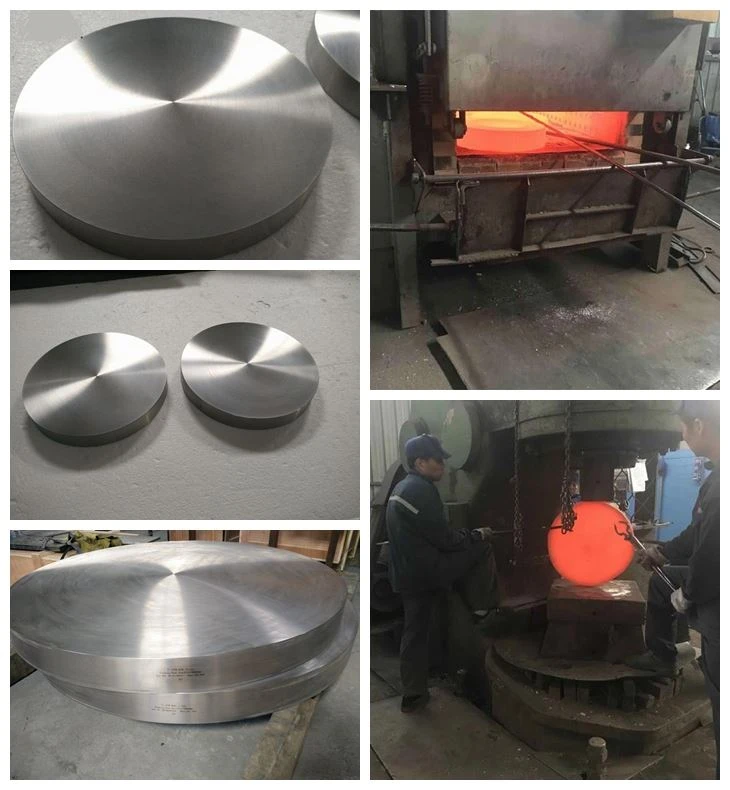

Titanium Forging disk / Disc is subjected to pressure to create a desired shape or suitable comprehensive force through plastic deformation. This force is typically achieved by using a hammer or pressure.The titanium Forged disc required to be identical to each other without any porosity, excess space, inclusions or other defects.
Product name: Titanium disks/titanium disc/titanium forging disc,titanium forging block/titanium forging disk
Standard: ASTM / ASME B381 , AMS 4928
Material Grade: Gr1,Gr2,Gr5, Gr7 ,Gr9,Gr12
Technique: Forged, CNC machine
Processing : titanium ingot , forging, annealing, machining
Application areas: aviation, military industry, petrochemical, metallurgy, electroplating, vacuum coating, etc.

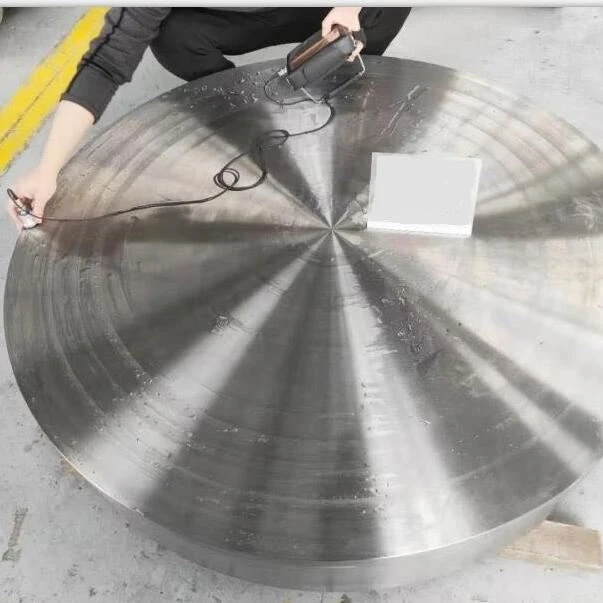

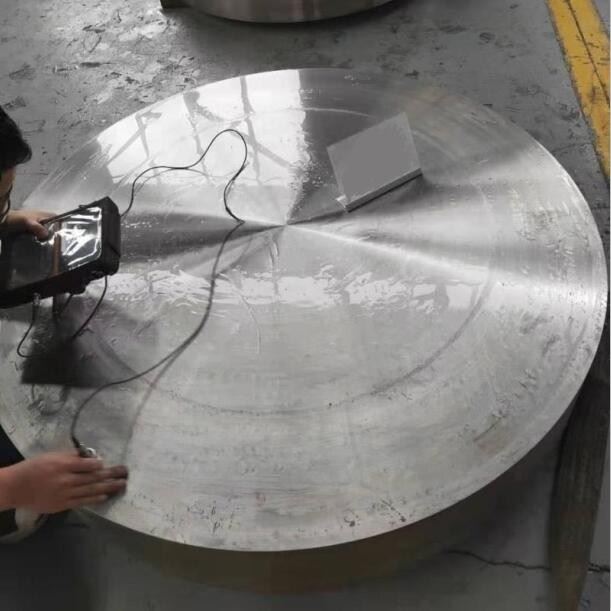

Our company has strict production requirements and quality inspection requirements for the titanium disks, such as the chemical composition, physical properties, metallographic structure, tolerance, perpendicularity, and Ultrasonic Testing, which fully meets the standards of ASTM B381.
|
Chemical composition |
|||||||||||
|
N |
C |
H |
Fe |
O |
Al |
V |
Pd |
Mo |
Ni |
Ti |
|
|
Grade 1 |
0.03 |
0.08 |
0.015 |
0.20 |
0.18 |
/ |
/ |
/ |
/ |
/ |
Bal |
|
Grade 2 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
/ |
/ |
Bal |
|
Grade 5 |
0.05 |
0.08 |
0.015 |
0.40 |
0.20 |
5.5-6.75 |
3.5-4.5 |
/ |
/ |
/ |
Bal |
|
Grade 7 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
0.12-0.25 |
/ |
/ |
Bal |
|
Grade 9 |
0.05 |
0.08 |
0.015 |
0.25 |
0.12 |
2.0-3.5 |
1.5-3.0 |
/ |
/ |
/ |
Bal |
|
Grade 12 |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
/ |
/ |
/ |
0.2-0.4 |
0.6-0.9 |
Bal |
Detailed images:
