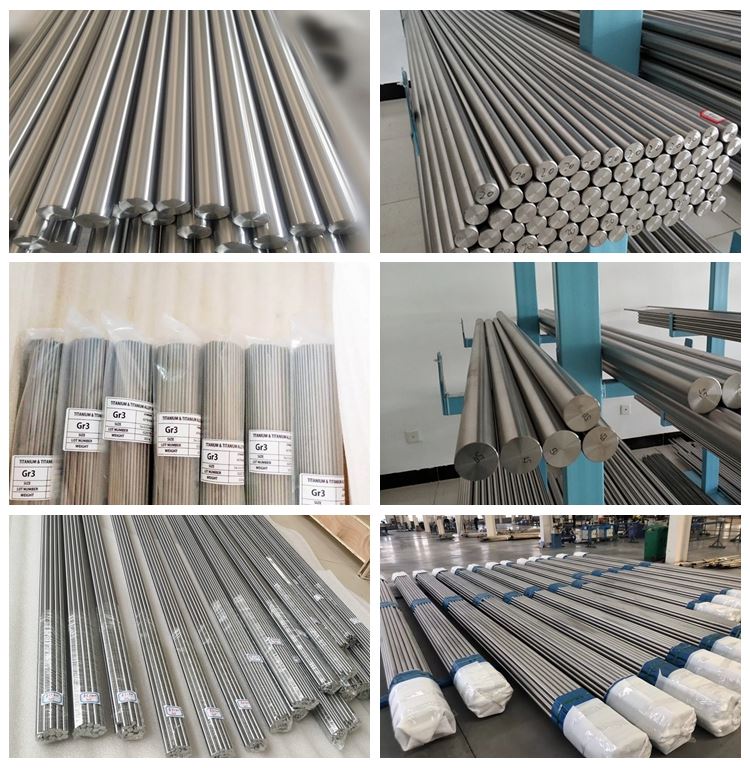

Titanium Bar Gr5
Standard: ASTM B348 AMS 4928
Material: Gr5
Unit Price: $15usd/kg- $30usd/kg
Shape: Round
Diameter: 6-350mm
Length: Max 6000mm
Surface: Bright
Condition: Annealed
The Grade 5 Titanium Bar, composed of Ti-6Al-4V, is an α+β type titanium alloy known for its superior mechanical properties. It offers a balance of strength and durability, with low thermal conductivity. The allowable length deviation is +20mm, and the cutting allowance is 5mm per incision.
High-quality titanium bars or rods are characterized by their low density and lightweight nature, combined with high strength. They exhibit excellent corrosion resistance, high-temperature stability, low-temperature performance, and resistance to both acids and alkalis.
|
Product name type |
Pure Titanium bar/Pure Titanium rod/Titanium alloy bar/Titanium alloy rod |
|
Standard |
ASTM B348/ASME SB348, ASTMF67, ASTM F136, ISO-5832-2(3) |
|
Titanium Type |
Commercially Pure(CP) / Titanium alloy |
|
Grade |
Gr1 Gr2 Gr5 |
|
Diameter |
5-350mm |
|
Length |
Max6000mm |
|
Technique |
Forging, Machining |
|
Surface |
Polished |
|
Shape |
Round, flat, square, hexagonal |
|
Application |
Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc. |
Chemical requirements
| ASTM No. | N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
Tensile requirements
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) | ||
| KSI | M Pa | KSI | M Pa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
Cooperation with us will provide you with a strong guarantee
1. ISO9001:2015
2. The timely delivery rate is 99.8%, sometimes in advance.
3. Excellent after-sale service.
4. Rapid inquiry reply, within 2 hours.
5. Fair payment term
6. Professional technical adviser
7. Material certificate
8. Quality is strictly according to ASTM standard(manufacturing process,surface treatment,inspections and testing).
Hot Tags: titanium bar gr5, China, manufacturers, suppliers, factory, customized, low price, in stock, made in China, grade 2 round titanium bar, Titanium Ti 6al 4v Bar, titanium bar gr7, titanium rod gr2, titanium bar for sale, titanium bar ti6a14v eli dental
