Introduction of Titanium Bar:
Titanium alloys are essential in the medical field due to their unique properties tailored to meet the rigorous demands of medical applications. Among these, Grade 3 titanium is particularly favored, especially in bar form for various medical devices and implants. This article explores the characteristics, benefits, and uses of Grade 3 titanium bars, highlighting their vital contribution to patient care and advancements in healthcare technology.
Medical Titanium Bars: Key Features and Specifications
Materials: Gr1,Gr2, Gr3, Gr4, Gr5, Gr5 ELI, Ti-6Al-7Nb,Gr23
Standard: ASTM F67, ASTM F136, ISO 5832-2, ISO 5832-3, ISO 5832-11
Surface: Polished
Diameter:4-96mm
Length:1000mm, 2000mm,3000mm , or customized by customers
Shape: round, flat
State: annealing (M)
Torlerance: h6, h7, h8, h9
Medical titanium bars play a vital role in various applications, especially for surgical implants like bone nails and dental components. These bars adhere to industry standards such as ASTM F67, ASTM F136, and ISO 5832-3, ensuring quality and reliability. Available in material grades including Grade 2, Grade 5, and Grade 23 (Ti6Al4V ELI), they typically range in diameter from 5mm to 20mm, with a standard length of 3000mm or customizable options. The bars feature a round shape and a bright surface finish, meeting tolerance grades of h7, h8, h9, and h10. Supplied in an annealed state, they are certified under ISO 9001, with optional third-party inspections (e.g., SGS, TUV). Packaging is offered in export cartons or plywood cases, and quality assurance includes an EN10204.3.1 certificate, ensuring compliance with rigorous quality standards.
Chemical composition of medical titanium bar:
|
Material Grade |
Ti |
Al |
V |
Nb |
Fe, max |
C, max |
N, max |
H, max |
O, max |
|
Gr1 |
Bal |
/ |
/ |
0.20 |
0.08 |
0.03 |
0.015 |
0.18 |
|
|
Gr2 |
Bal |
/ |
/ |
0.30 |
0.08 |
0.03 |
0.015 |
0.25 |
|
|
Gr3 |
Bal |
/ |
/ |
0.30 |
0.08 |
0.05 |
0.015 |
0.35 |
|
|
Gr4 |
Bal |
/ |
/ |
0.50 |
0.08 |
0.05 |
0.015 |
0.40 |
|
|
Gr5 ELI Ti-6Al-4VELI |
Bal |
5.5~6.5 |
3.5~4.5 |
0.25 |
0.08 |
0.05 |
0.012 |
0.13 |
|
|
Ti-6Al-7Nb |
Bal |
5.5-6.5 |
/ |
6.5-7.5 |
0.25 |
0.08 |
0.08 |
0.009 |
0.20 |

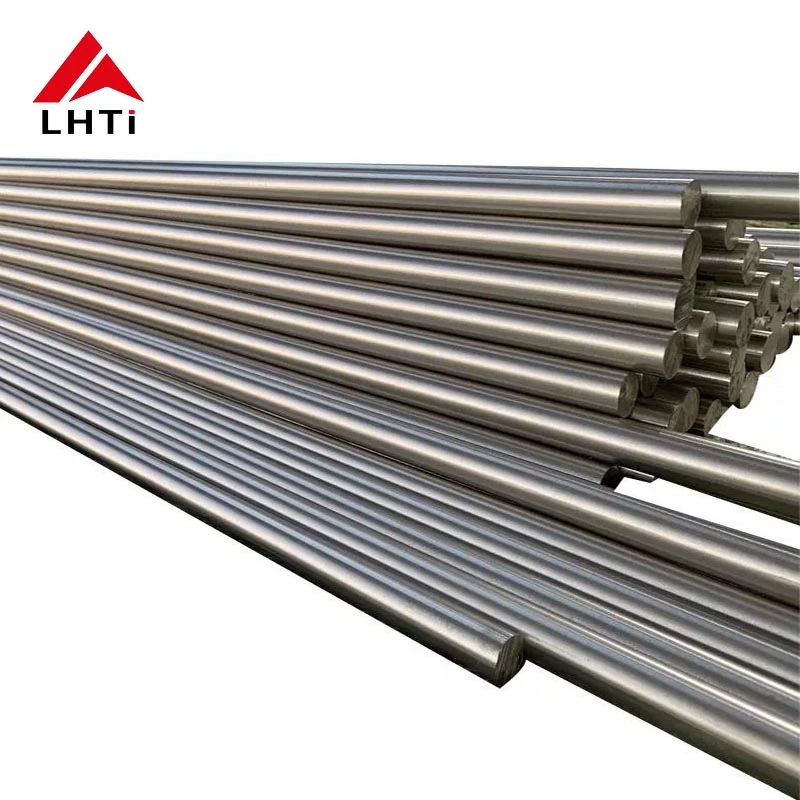

Detailed images:
