Gr3 Titanium Sheet
Name: Titanium sheet
Standard: ASTM B265
Grade: Gr3
Send Inquiry
Product Introduction

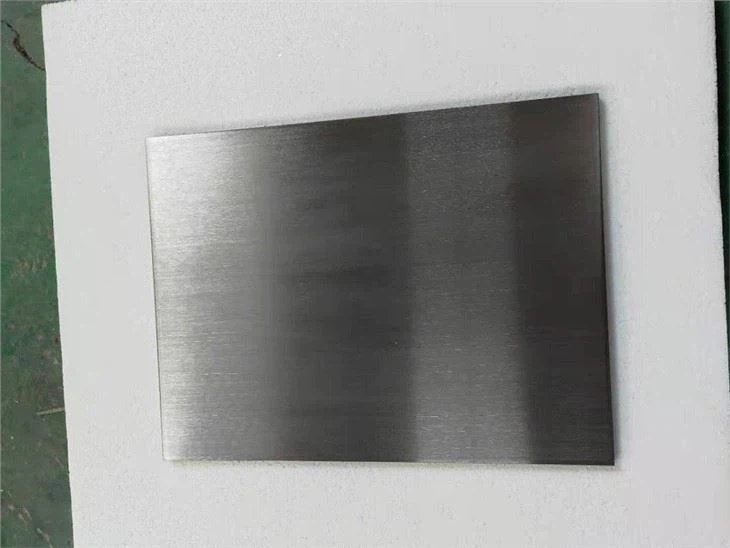

Gr3 titanium sheet
| Specification of Titanium foil/Titanium sheet/Titanium plate | |||
| Thickness(mm) | Width(mm) | Length(mm) | |
| Titanium foil | 0.03-0.5 | 30-150 | 30-200 |
| Titanium sheet | 0.5-5 | 30-1000 | 30-2000 |
| Titanium plate | 5-60 | 200-2800 | 1000-6000 |
Advantages of Titanium Materials
| Characters of Titanium | |
| 1. High Strength | Titanium strength/density ratio is better than other metals, components with high strength, good rigity, less weight can be made out of titanium. Titanium is applied for aircrafts engines, frames, skins, fastners and landing gears. |
| 2. Anti-Corrosion | Compared with stainless steel, titanium alloy's corrosion is better in moisture laden air, seawater, titanium greatly resists spot corrosion, acid corrosion and stress corrosion. Titanium resists corrosions to alkali, chloride, chlorinated organic sunstances, sulphuric acid, nitric acid. |
| 3. High-Temperature Resistance | Titanium application temperature's higher than aluminium alloys. Titanium can work in 450-500℃ for long time. Titanium alloy stil prossesses high strength when working in 150-500℃. Titanium working temperature can be reached to 500℃ |
Chemical requirements
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |

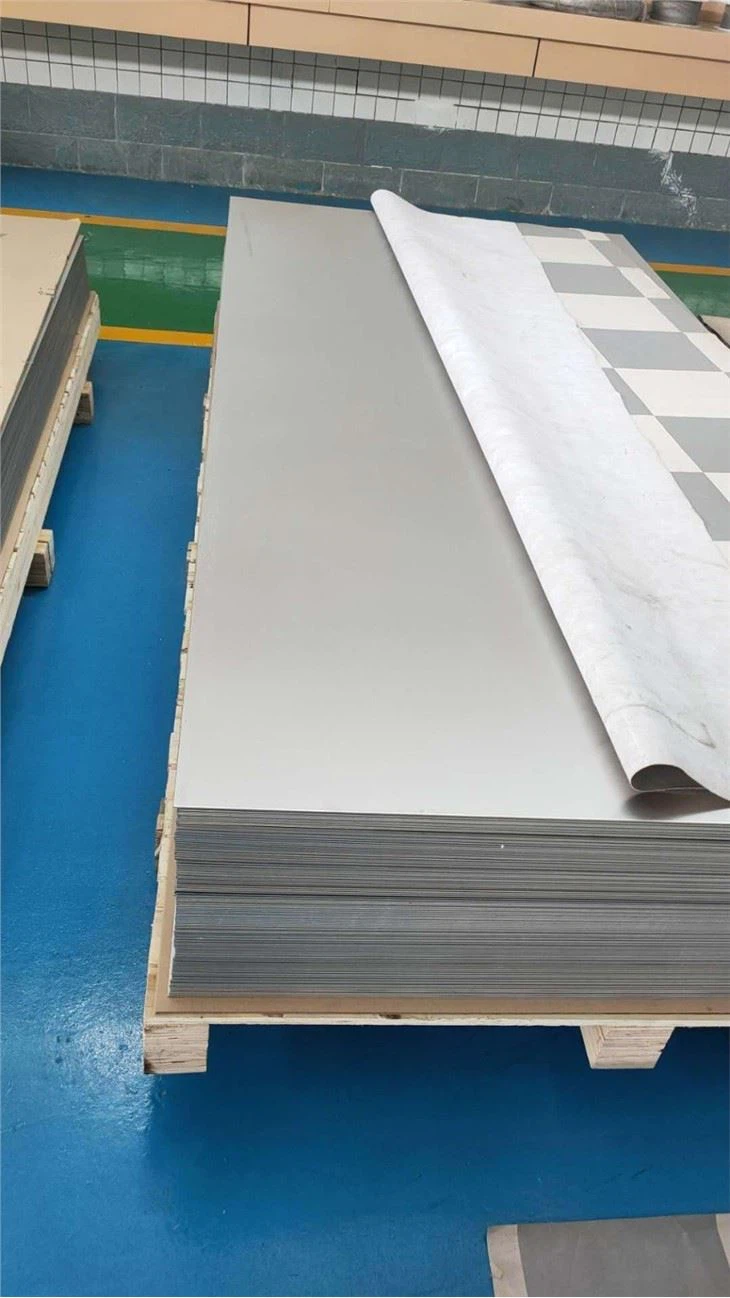

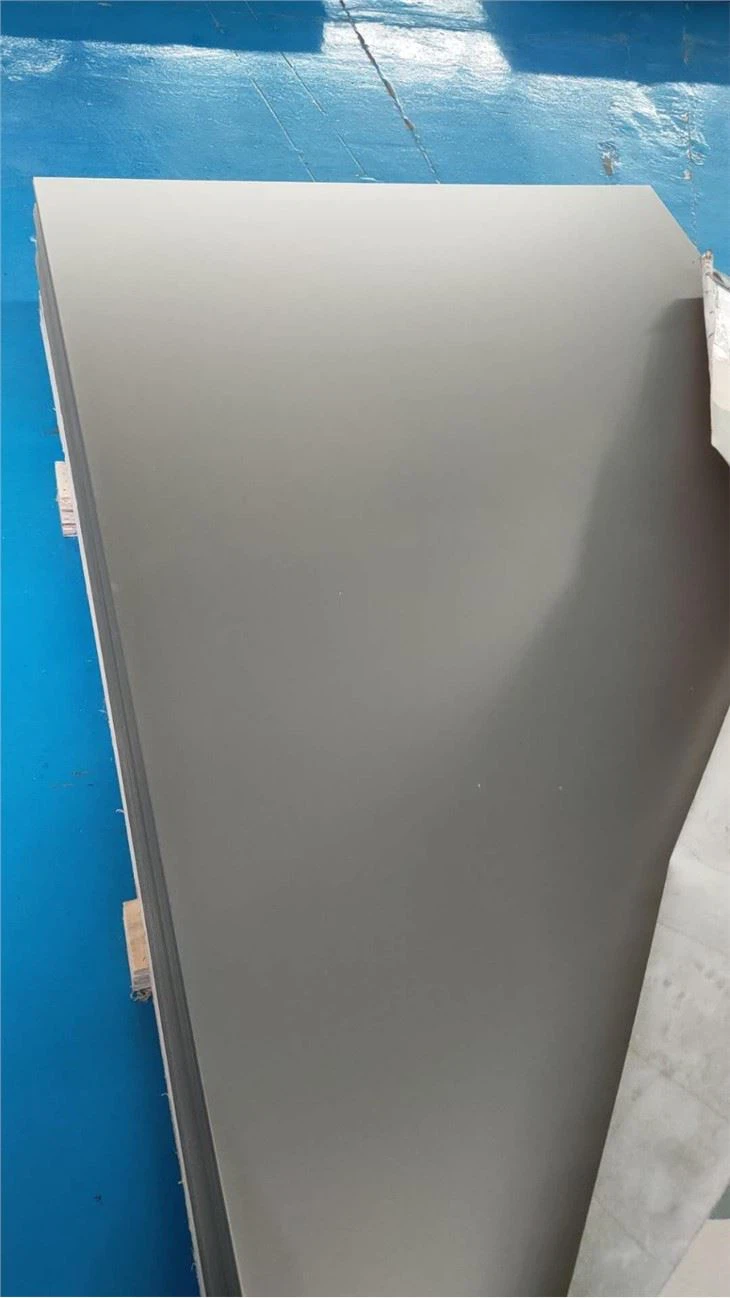

Titanium plate/sheet in stock:
Thickness(0.5mm-0.7mm)*Width≤1000mm*L≤2000mm
Thickness(0.8mm-4.0mm)*Width≤2000mm*L≤6000mm
Thickness(5.0mm-50mm)*Width≤2000mm*L≤6000mm
Thickness(60mm-100mm)*Width≤2000mm*L≤6000mm
