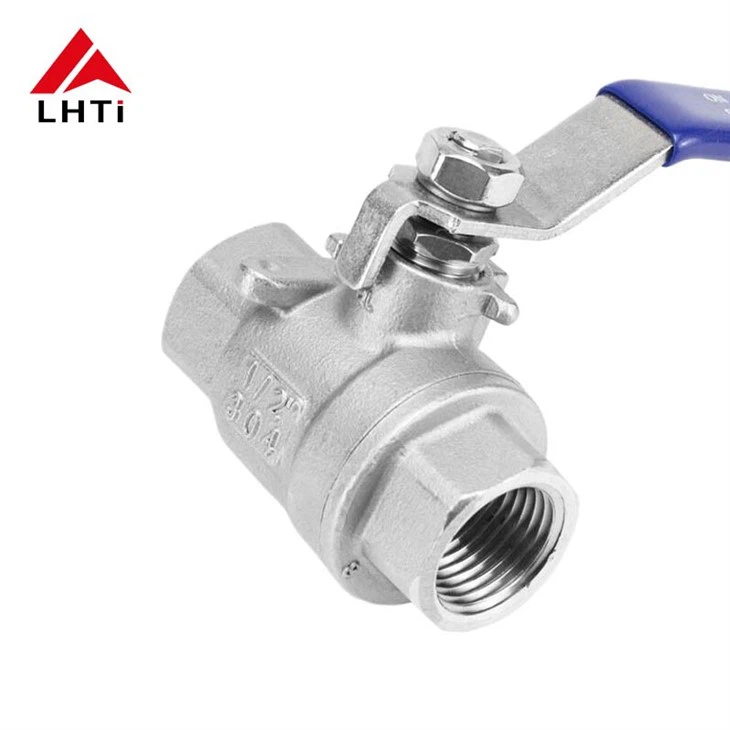

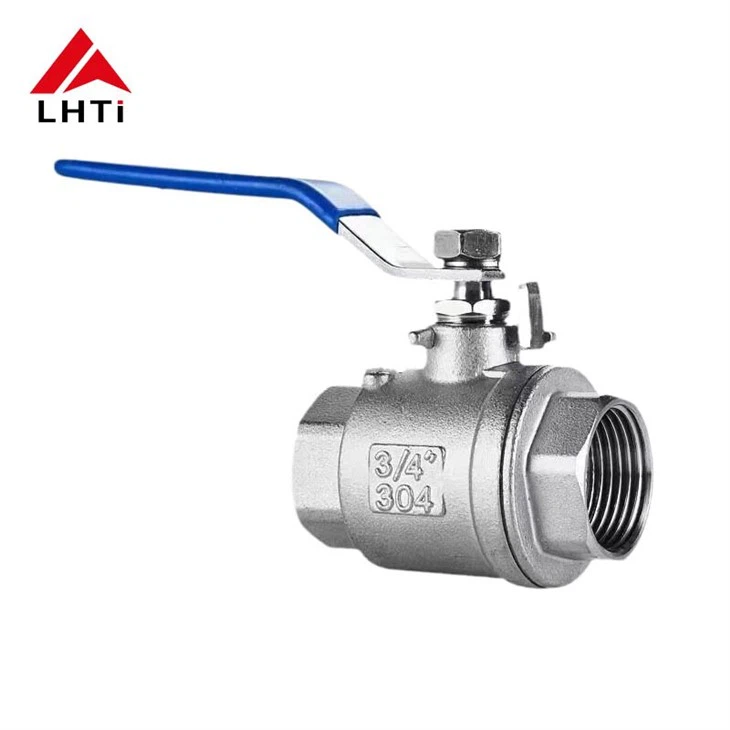

2 Way Threaded Titanium Ball Valve
2 Way Threaded Titanium Ball Valve

2 Way Threaded Titanium Ball Valve

Pressure:150PS1
Temperature:0 Deg C - 1200 Deg C.
Body , Chest:Solid One piece casting of Cast Iron Fg 260, Cast Steel Gr WCB ,CF8,CF8M.
Seat:Integral to Body, Soft, Optional
Hand Wheel:Cast Iron , Cast steel , Ductile Iron
Gland Packing:PTFE , PTFE Impregnated

Send Inquiry

Product Introduction

2 Way Threaded Titanium Ball Valve

What is 2 Way Ball Valve?

The valves also have different pressure capacities. Usually the smaller diameter valves handle high pressures. The pressure capacities range from 150lb to 2500lb. The 2 Way Actuated Ball Valve is used in applications where the valve has to regulate the flow through mechanical or electrical operation. The materials used for the ball and the valve body might vary based on the material flowing inside and the expected pressure.

A 2-way ball valve is a type of valve that controls the flow of fluid through a simple design consisting of a ball with a hole through its center. Here's a breakdown of its key features based on the provided information:

Functionality: The 2-way ball valve is primarily designed to start, stop, or regulate flow by rotating the ball inside the valve. When the hole in the ball is aligned with the flow path (open position), fluid can pass through. Rotating the ball 90 degrees blocks the flow (closed position).

Pressure Capacities: These valves are available in different pressure ratings, typically ranging from 150lb to 2500lb. The pressure rating indicates the maximum pressure the valve can safely handle without leaking or failing.

Actuation: While some 2-way ball valves are manually operated (hand-operated), others can be actuated mechanically or electrically. Actuated ball valves use motors, pneumatic actuators, or electric actuators to automate the opening and closing of the valve. This is useful in applications where remote operation, precise control, or automation is required.

Materials: The choice of materials for the ball and valve body depends on the specific application requirements, including the type of fluid flowing through the valve and the expected pressure conditions. Common materials include stainless steel, carbon steel, brass, bronze, and various alloys. The selection ensures compatibility with the fluid properties and resistance to corrosion or wear.

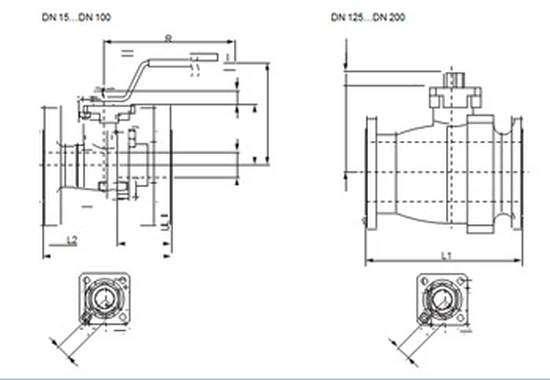

Product Specifications:Class 150 2 Way Ball Valve Dimensions

2-way-ball-valve-dimensions

DN	L1	L2	H1	H2	H3	R	ISO 5211	U	Flange Drillings	Weight
[mm]	L1	L2	H1	H2	H3	R	ISO 5211	U	[Quantity]	[kg]
15	108	41.5	50	11	92	180	F05	11	4	2
20	117	48.5	53.5	11	92.5	180	F05	11	4	2.5
25	127	54	58.5	14	100.5	180	F05	14	4	3.4
32	140	67	71	14	113	180	F05	14	4	4.7
40	165	84	76	17	122.5	300	F07	17	4	7.2
50	178	90	83.5	17	130	300	F07	17	4	10
65	190.5	92.5	95	17	141.5	300	F07	17	4	14.7
80	203	94.2	113	22	194.5	400	F10	22	4	20.4
100	229	114.5	131	22	212.5	400	F10	22	4	31.3
125	325	–	151.5	22	–	700	F10	22	8	52
150	394	–	217	37	–	700	F14	36	8	74
200	457	–	252	37	–	700	F14	36	8	100

Dimensions Table of Class 300 2 Way Ball Valve

DN	L1	L2	H1	H2	H3	R	ISO 5211	U	Flange Drillings	Weight
[mm]	L1	L2	H1	H2	H3	R	ISO 5211	U	[Quantity]	[kg]
15	140	73.5	50	12	92	180	F05	11	4	2.5
20	152	83.5	58.7	11	97.7	180	F05	11	4	3.6
25	165	92	62	14	104	180	F05	14	4	4.5
32	178	105	71	15	117	180	F05	14	4	6.1
40	190	109	78	15	124.5	300	F07	17	4	9.7
50	216	128	84.5	17.5	135	300	F07	17	8	11.6
65	241	143	95.5	16.5	142	300	F07	17	8	17
80	282.5	173.7	113	22	198.5	400	F10	22	8	25.1
100	305	190.5	131	23.5	216.5	400	F10	22	8	43.1
150	403	–	217	37	–	700	F14	36	8	124
200	502	–	252	37	–	700	F14	36	8	180
